Parts Design Checking

  Customer’s Parts design 2D & 3D Checking

    2D with PDF or DWG format

     3D with .igs or .stp format



Mold Design Checking

  Intertech Presents Mold Design Layout

     Customer approves the Mold Design Layout



Mold DFM Service Making

  DFM is optional service, upon each request



​Mold Steel Selection

  P20 & H13 & 420 are commonly used for mold core & cavity
  steel selection

     Mold Steel imports from Japan & German


Mold Base Making

  S50C is commonly used for mold base steel selection

     Mold Steel imports from Japan & German

  Mold Base Machining, Hole Drilling job etc.


Mold Cavity & Core CNC Machining Making

  Intertech’s own CNC Machining Center

     Good precision control

     Good timing control



Mold Spotting



Mold Sampling



T1 Samples Inspecting



Our Mold Making Process Step Example

  * 1 cavity ABS black rod coupling mold making

  * Customer is from USA, a professional injection moulding factory.

  * With Hasco standard mold base, mold base material is with S50C.

  * With Hasco standard cooling line fittings

  * Cavity & core insert material: , H13, harden steel, HRC 48~53

  * Mold life: 30~500,000 shots minimum

  * Surface : high polish

  * Operation type: fully auto with part falling

  * Part material: ABS

  * Gate style: sub-gate



     Highlight: we make good quality of mold making for our customers.






Project Development

  Intertech Machinery is good at manufacturing plastic mold components used in industrial and packaging applications. Per customer’s demand, we will discuss the raw material required, the color master batch requires, mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customers. After that, parts design service, mold engineering service,
mass production arrangement, post assembly service or post machining service are also provided.


Each mold and molding projects case, we will see client specifications to serve the needs of a wide variety of industries. Our injection mold technology have D&B D-U-N-S compliant working system and meets high industry standards. We can mold any plastic, metal and rubber projects for customers. We have advanced machinery equipment to provide small to larger mold projects and also manufacture thermoplastic, engineering plastics, silicone rubber and metal parts.



  Project Highlight Points:

   Our professional service includes engineering, mold making, prototyping and tooling
   From single prototype to OEM and ODM high professional volume production, We can manage all our clients plastic injection molding requirements.
   Except making mold, we also provide injection molding service, compression molding service (especial for  silicone rubber material compounding with various colors matching and production job for specific product need) or punch die production service.
  Our injection mold testing machine available 50~250T in house, 300~3000T in associated party.
    Per each project need, we also design and provide fixture and jig making service for stabilizing
    some easy deformed parts need.
     Per customer’s need, we also provide chrome plated, painting, ultra-sonic welding, assemble or  packing/printing service.
    We provide low volume, pilot run of production job and mass production for customer.

send an inquiry




Mold Making Process Quality Management Process

Mold Checking


  Mold Checking

     we check mold steel hardness and size precision. We test the mold and measure the
     parts and
discuss all the time with customer with good report


Mold Checking

  Dimension checking report

     All sizes of mold and products are strict checked by our professional engineers
     in shop.


Precision checking



  Dimension Checking Report

     For each time of mold testing, we do key dimensional check as per customer's
     request.


Product burr checking


  Product burr checking


     For each time of mold testing, we do key dimensional check as per customer's request.

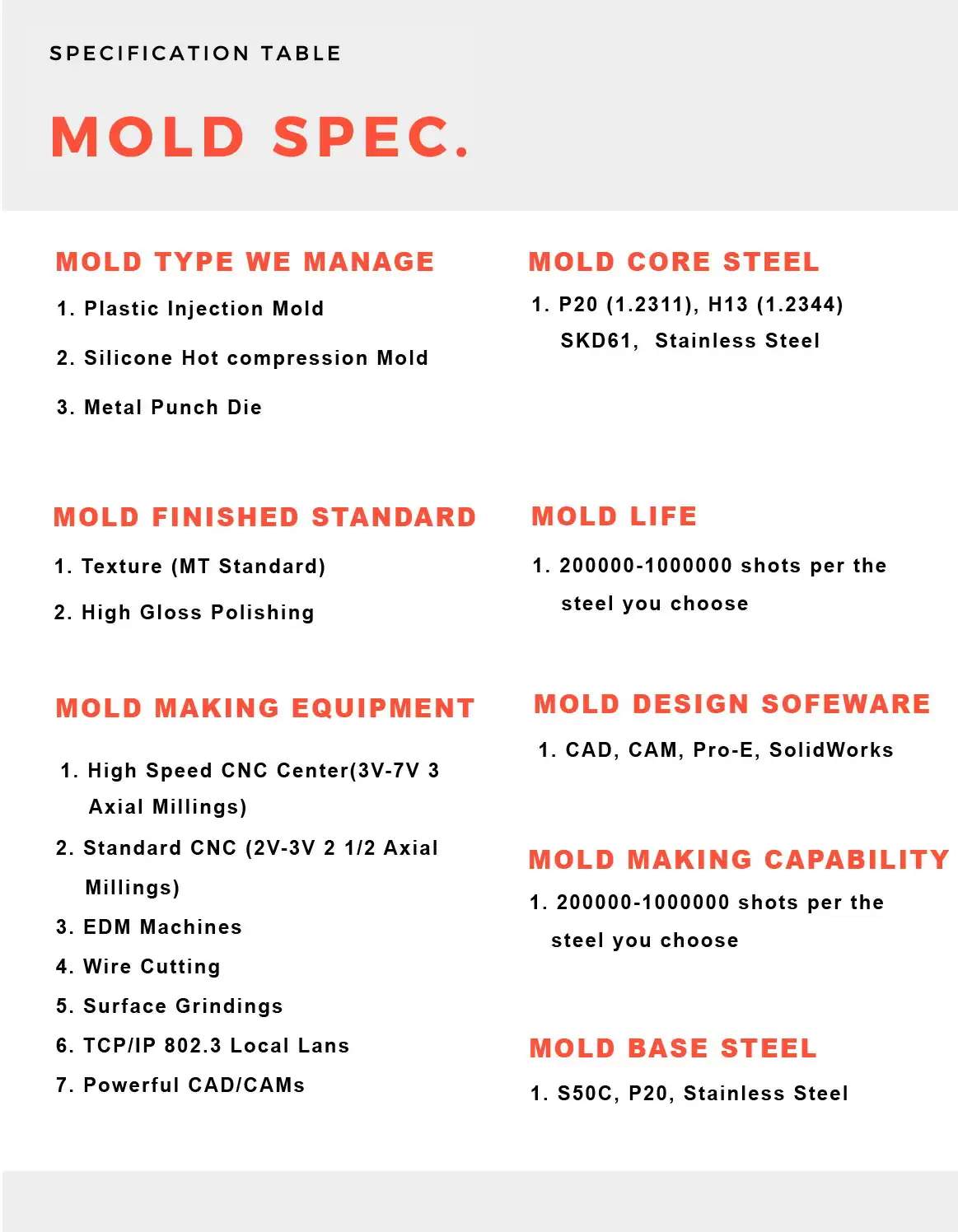

Mold specification


Mold specification


For Plastic Mold Design- Our Service Detail:

  1. The software we use includes Pro-Engineer, I-Deas, Cimetron, Auto-Cad & Solidworks.

  2. Cutomer can send 2D, 3D, by .igs .stp, formats to us.

  3. We can provide mold flow analysis service.

  4. Mold design (with the best optimized mold water channel arrangement design and

  the best cycle time performance consideration design)

  In addition, CNC milled prototype, 3D printing prototype, prototype mold making service, fixture / jig making or
  welding horn design and making are available in Intertech with good experience !

  We need 2D, 3D parts design to start our job, we can sign NDA (if needed)


For Mold Making - Our Service Detail:

  When making mold project, per customer’s requirement for mold steel material, we choose the suitable mold     steel grade for our customers.  We have high quality German and Japan imports mold steel material to   proceed our mold project making. Then, the gating way will be discussed, the mold surface will be discussed,   the mold cooling channel design will be checked, the operation style will be discussed, the molding machine   size will be determined and the mold mechanism in actual production movement will all be checked as well.   Only after our mold engineers discussing with our customers for the mold engineering in detail, we will proceed   with our mold making job.



​For Mold Inquiry, Customer Must Prepare:

  1. Product drawing with 2D(.dwg)and 3D (.igs, .stp…etc)?
  2. Advise product material (ex. Plastic ,rubber, silicone rubber or metal…etc )?
  3. Molding machine tonnage size and platen size?
  4. The cavity number of the mold that you want us to quote?
  5. Mold steel grade that you want us to quote?
  6. Hot runner or cold runner mold required?
  7. Mold gating inlet preferred?
  8. Mold ejection way preferred?
  9. Other related information required …(ex. Polishing , texture, engraving …etc)

​For Molding Products Inquiry , Customer Must Prepare:

  1. Products material required? (ex. Plastics, rubber , silicone , metal…etc)
  2. Products quality required in total?
  3. Delivery time required?
  4. Post machining or not information? (ex. Chromed plate.., painting …etc)
  5. Assembly or not information?
  6. Packing or not information?
